Measured Building Surveys

A measured building survey refers to the internal and external survey of standing buildings or structures. It can include a variety of outputs ranging from a basic floor plan to a detailed 3D building model.

  • Walls
  • Ceiling Plans

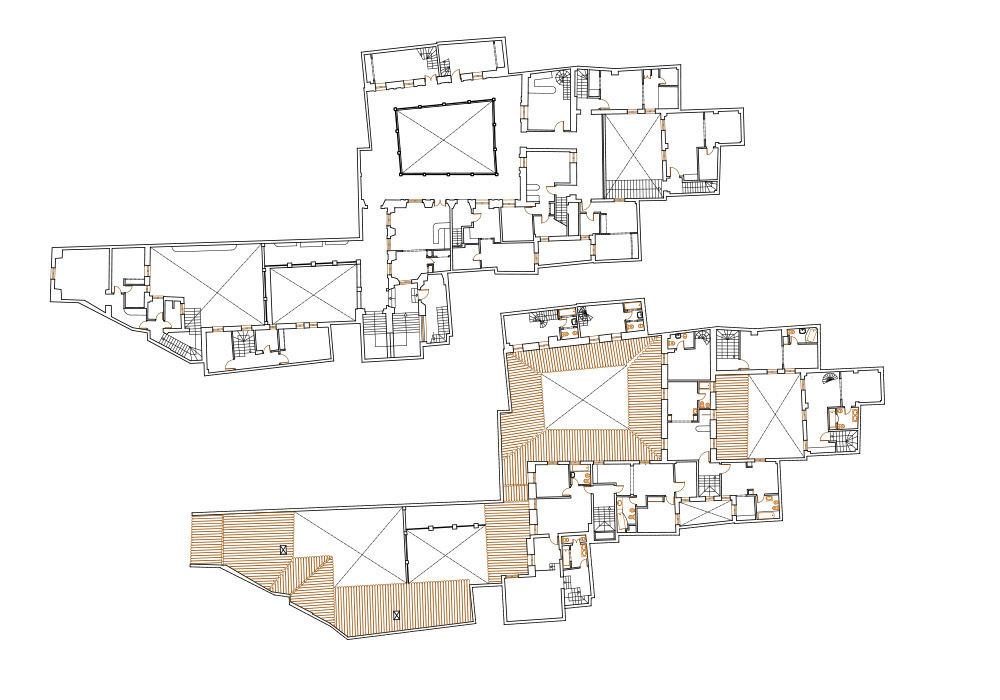

  • Floor Plans
  • Space
  • Access
  • Elevations
  • Sections
  • built information
  • As built surveys

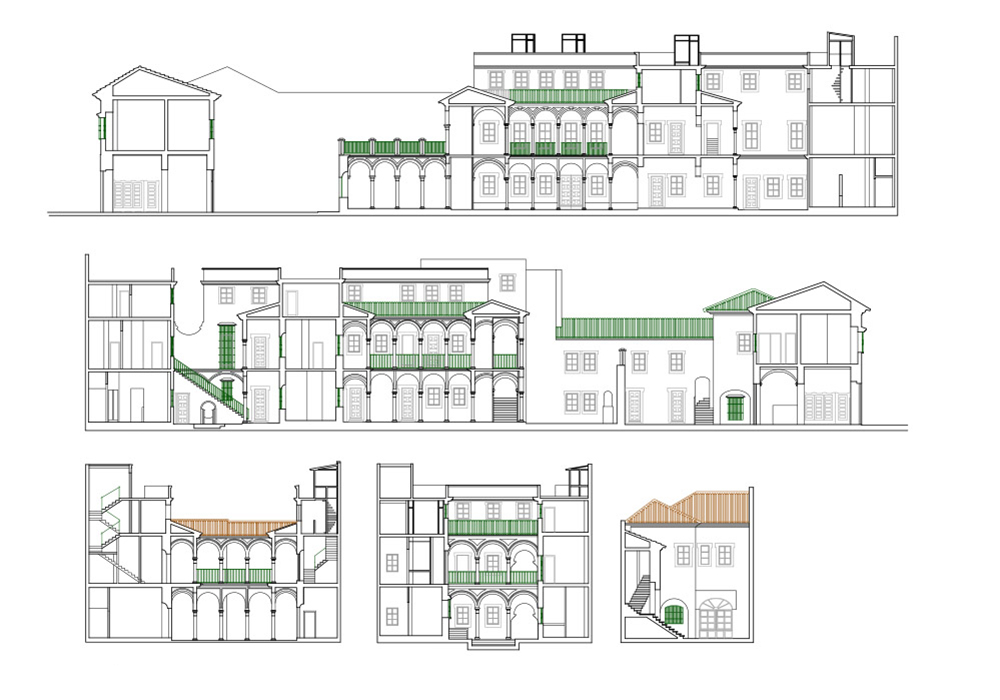

  • Complete cross and longitudinal sections showing building as
  • Internal partitions, stud wall, solid walls
  • Doors, risers, access hatches, fire escapes, windows, stairs, lifts
  • FFL, intrusive surveys under raised flooring for SSL and service detail
  • FCL, false ceiling level, intrusive surveys into the ceiling void for soffit and service detail
  • Full external elevations showing building profile, window heights, roof heights etc.
  • Description of rooms, surface types and finishes, floor nett/gross area calculations, service positions as switchers/sockets/comm's cables
